vue3 数据可视化大屏 猪场检疫数据监控大屏

id

362

运行环境

nodejs 23

开发框架

vue3 vite js

分辨率

1920*1080

演示地址

演示demo:vue3 数据可视化大屏 猪场检疫数据监控大屏

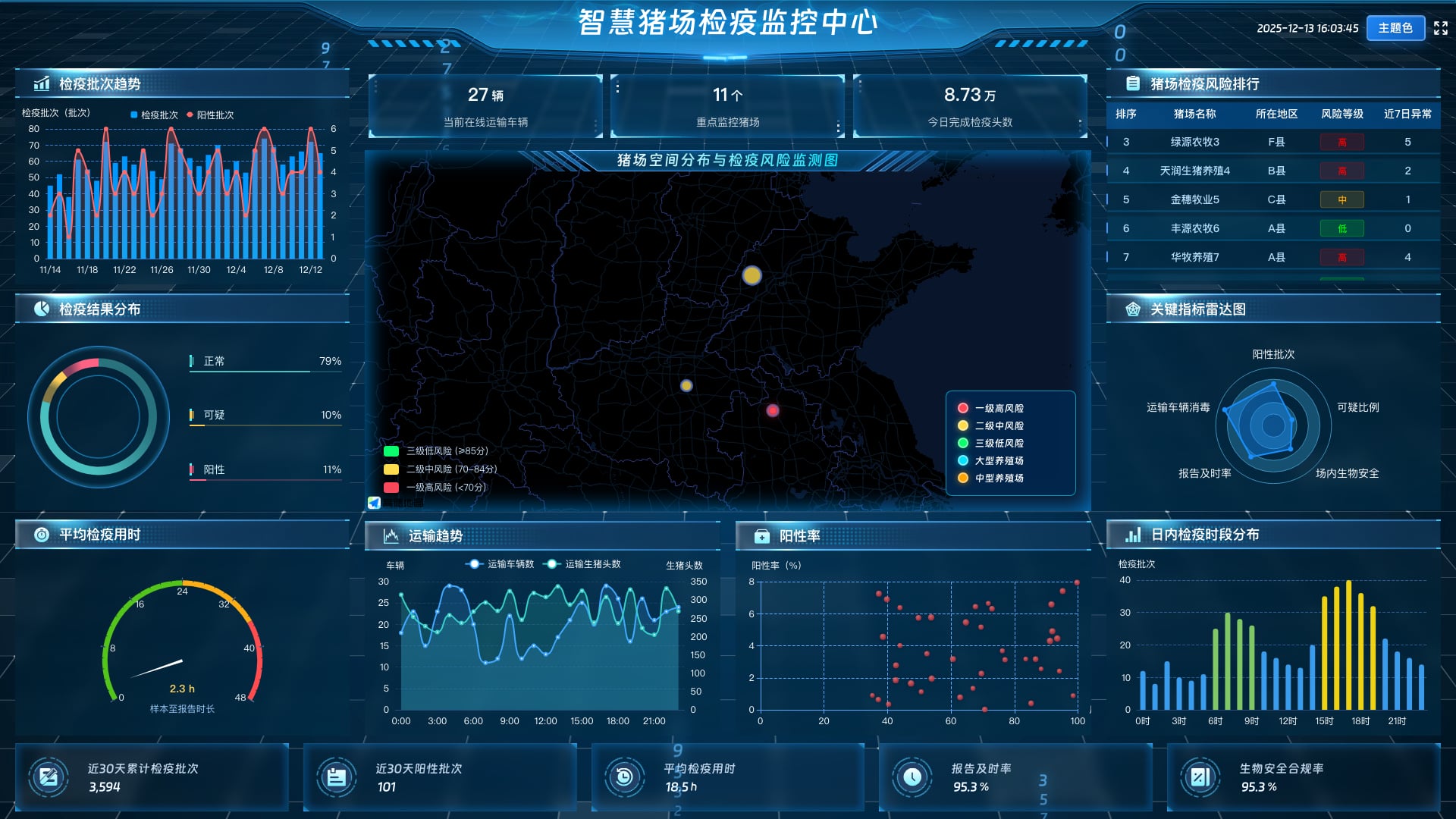

效果截图

视频演示

模块列表

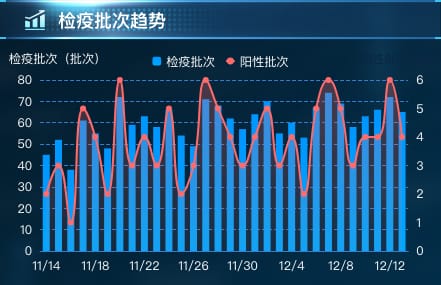

检疫批次趋势

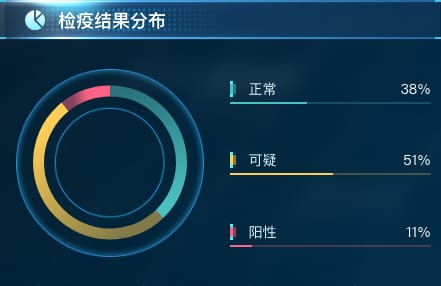

检疫结果分布

平均检疫用时

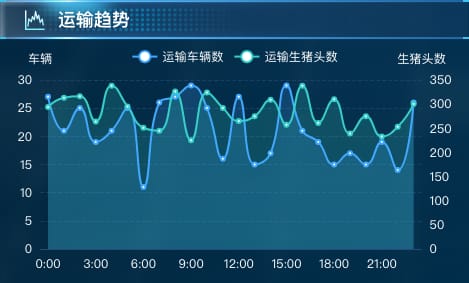

运输趋势

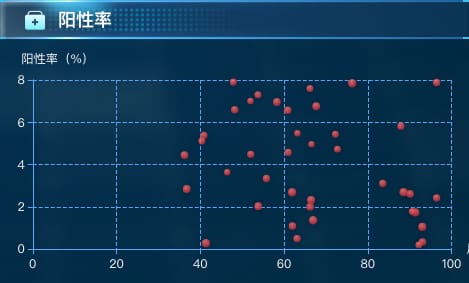

阳性率

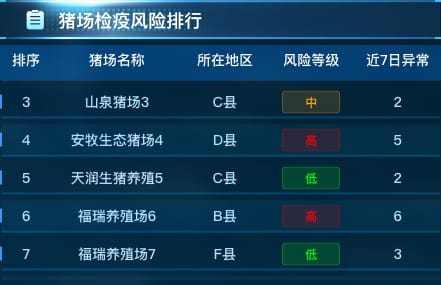

猪场检疫风险排行

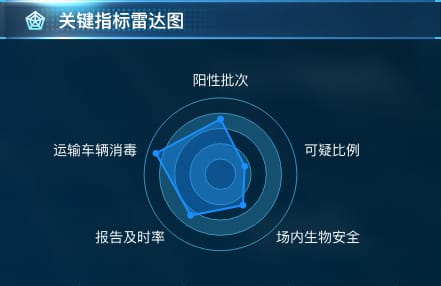

关键指标雷达图

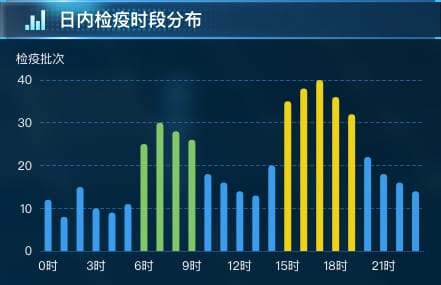

日内检疫时段分布

运输与检疫运行总览

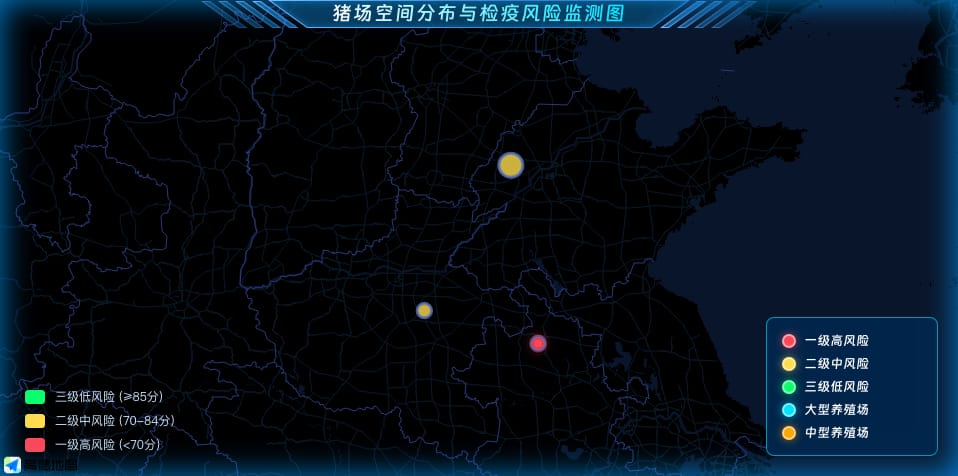

猪场空间分布

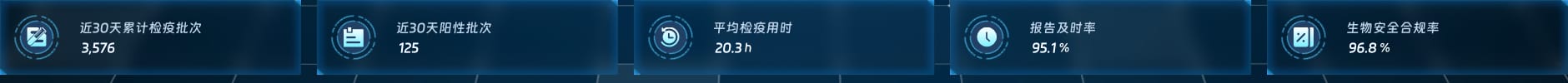

检疫效率与风险总览

项目依赖

{
  "name": "362_zhuyijiance_vue3",
  "private": true,
  "version": "1.0.0",
  "type": "module",
  "scripts": {
    "dev": "vite",
    "build": "vite build",
    "build-qiniu": "vite build && node ./qiniu.js",
    "build-qiniu2": "node ./qiniu.js",
    "preview": "vite preview"
  },
  "dependencies": {
    "@meruem117/vue-seamless-scroll": "^0.1.8",
    "@turf/turf": "^7.3.1",
    "autoprefixer": "^10.4.13",
    "axios": "^1.5.1",
    "dayjs": "^1.11.7",
    "disable-devtool": "^0.3.7",
    "echarts": "^5.4.3",
    "echarts-extension-amap": "^1.12.0",
    "fs": "0.0.1-security",
    "gsap": "^3.11.4",
    "pinia": "^3.0.4",
    "postcss": "^8.4.21",
    "postcss-loader": "^7.0.2",
    "postcss-pxtorem": "^6.0.0",
    "qiniu": "^7.8.0",
    "sass": "^1.57.1",
    "sass-loader": "^13.2.0",
    "style-loader": "^3.3.1",
    "three": "^0.180.0",
    "vue": "^3.2.45",
    "vue-router": "^4.1.6",
    "wow.js": "^1.2.2"
  },
  "devDependencies": {
    "@vitejs/plugin-vue": "^4.0.0",
    "vite": "^4.0.0"
  }
}

部分代码

<template>
<div class="home" id="home" :style="filterStyle">
    <!--    数字粒子-->
    <bgAnimate></bgAnimate>
    <!--    粒子效果-->
    <bgAnimate2></bgAnimate2>
    <!--    格子背景-->
    <bgAnimate3></bgAnimate3>
    <top class="wow fadeInDown" name="智慧猪场检疫监控中心"></top>
    <div class="homeMain">
      <div class="homeMainl">
        <div class="item1">
          <item name="检疫批次趋势" icon="icon-1qushi" :duration="0.5" :delay="0">
            <item1></item1>
          </item>
        </div>
        <div class="item1">
          <item name="检疫结果分布" icon="icon-2fenbu" :duration="0.5" :delay="0.5">
            <item2></item2>
          </item>
        </div>
        <div class="item1">
          <item name="平均检疫用时" icon="icon-3yongshi" :duration="0.5" :delay="1">
            <item3></item3>
          </item>
        </div>
      </div>
      <div class="homeMainc">
        <div name="运输与检疫运行总览" data-module-id="运输与检疫运行总览" class="item3">
          <item7></item7>
        </div>
        <div name="猪场空间分布" ref="item0Ref" data-module-id="猪场空间分布" class="item0">
          <item8></item8>
        </div>
        <div class="item1">
          <div class="item1Inner">
            <item name="运输趋势" icon="icon-7qushi" :duration="0.5" :delay="1">
              <item9></item9>
            </item>
          </div>
          <div class="item1Inner">
            <item name="阳性率" icon="icon-8yangxing" :duration="0.5" :delay="1">
              <item10></item10>
            </item>
          </div>
        </div>
      </div>
      <div class="homeMainr">
        <div class="item1">
          <item name="猪场检疫风险排行" icon="icon-4paihang" :duration="0.5" :delay="0">
            <item4></item4>
          </item>
        </div>
        <div class="item1">
          <item name="关键指标雷达图" icon="icon-5leida" :duration="0.5" :delay="0.5">
            <item5></item5>
          </item>
        </div>
        <div class="item1">
          <item name="日内检疫时段分布" icon="icon-6fenbu" :duration="0.5" :delay="1">
            <item6></item6>
          </item>
        </div>
      </div>
    </div>
    <div name="检疫效率与风险总览" data-module-id="检疫效率与风险总览" class="homeMain2">
      <item11></item11>
    </div>
  </div>
</template>

<script>
import {ref, onMounted} from 'vue'
import {storeToRefs} from 'pinia'
import {useFilterStore} from '@/stores/filterStore'
import top from '@/components/top/index.vue'
import WOW from "wow.js"
import item from "@/components/item/index.vue"
import item1 from './components/item1/index.vue'
import item3 from './components/item3/index.vue'
import item5 from './components/item5/index.vue'
import item4 from './components/item4/index.vue'
import item2 from './components/item2/index.vue'
import item6 from './components/item6/index.vue'
import item7 from './components/item7/index.vue'
import item8 from './components/item8/index.vue'
import item9 from './components/item9/index.vue'
import item10 from './components/item10/index.vue'
import item11 from './components/item11/index.vue'
import bgAnimate from '@/components/bgAnimate/index.vue'
import bgAnimate2 from '@/components/bgAnimate2/index.vue'
import bgAnimate3 from '@/components/bgAnimate3/index.vue'
import gsap from "gsap";

// 引入滤镜store
const filterStore = useFilterStore()
const {filterStyle} = storeToRefs(filterStore)

// 创建ref引用
const item0Ref = ref(null)

// 生命周期钩子
onMounted(() => {
  const wow = new WOW({})
  wow.init()

  // GSAP 缩放动画
  gsap.from(item0Ref.value, {
    scale: 0,              // 从0开始(完全缩小)
    duration: 1.5,         // 动画持续1.5秒
    ease: 'back.out(1.7)', // 缓动效果,带有弹性回弹
    delay: 0.3             // 延迟0.3秒开始
  })
})
</script>

大屏数据可视化模板

数据可视化大屏模板

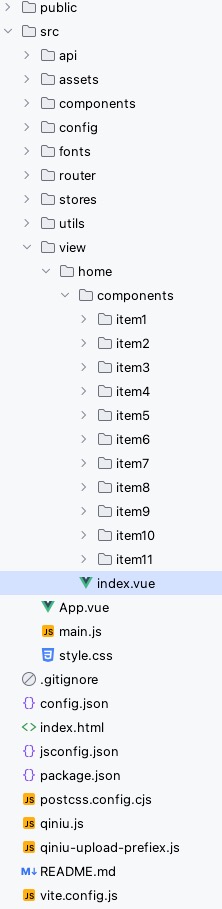

项目文件目录

项目说明

数据非真实数据,仅做效果展示

相关大屏

智慧鸡场生产数据大屏 - 数据可视化大屏 vue3

源码下载

项目基于vue3+vite+js开发 nodejs 23

获取代码前请确保具备相关开发基础

本项目为纯前端大屏，无后端支持

默认数据为模拟数据，实际使用时需接入真实数据源

请在确认需求后再获取相关代码

当前为vue3版本，如果需要vue2版本请访问：猪场检疫数据监控大屏 - 数据可视化大屏 vue2
