智慧消防大数据中心数据可视化平台 vue3

vue3 可视化数据大屏 智慧消防大数据中心

id

运行环境

nodejs 23

开发框架

vue3 vite js

分辨率

1920 * 1080

演示地址

演示demo:智慧停车场运营数据大屏可视化数据大屏 vue3

动态效果

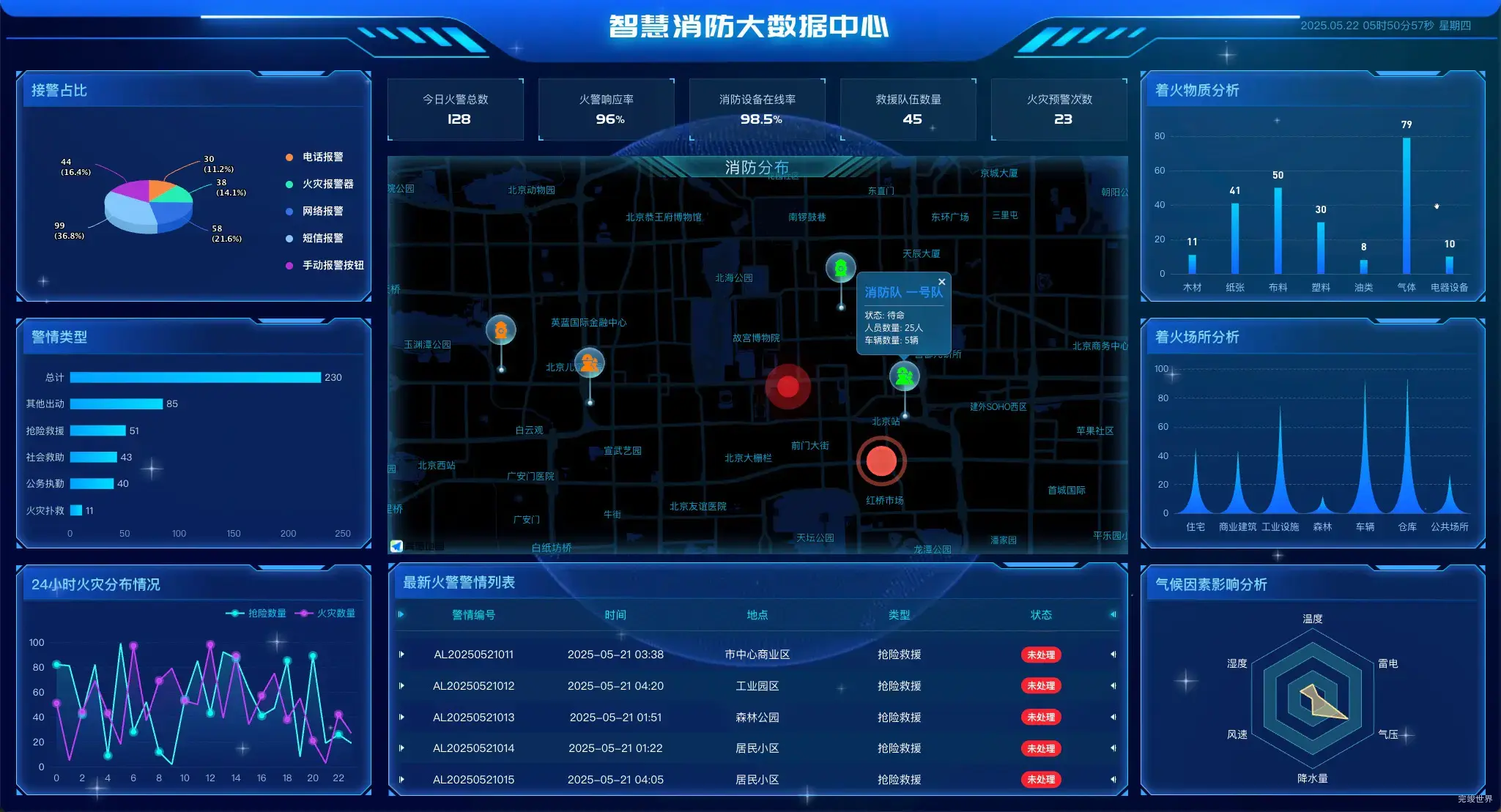

智慧消防大数据中心

接警占比

3D 饼状图，电话报警、火灾报警器、网络报警、短信报警、手动报警按钮等多渠道占比一目了然。

警情类型

纵向柱状图，涵盖火灾扑救、抢险救援、社会救助等多种警情类型。

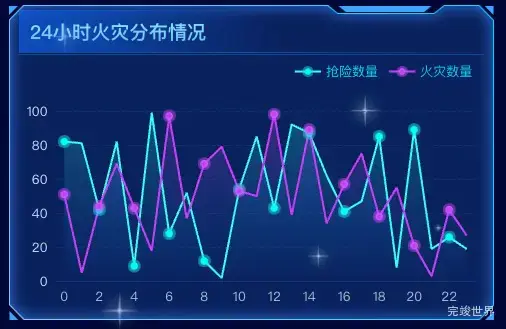

24小时火灾分布情况

折线图实时展示火灾与抢险数量的时间分布。

着火物质分析

柱状图分析木材、纸张、塑料、油类等物质的火灾发生情况。

着火场所分析

异形柱状图，住宅、商业、工业、森林、车辆等场所火灾一览无遗。

气候因素影响分析

雷达图展示温度、湿度、风速、降水量等气候因素对火灾的影响。

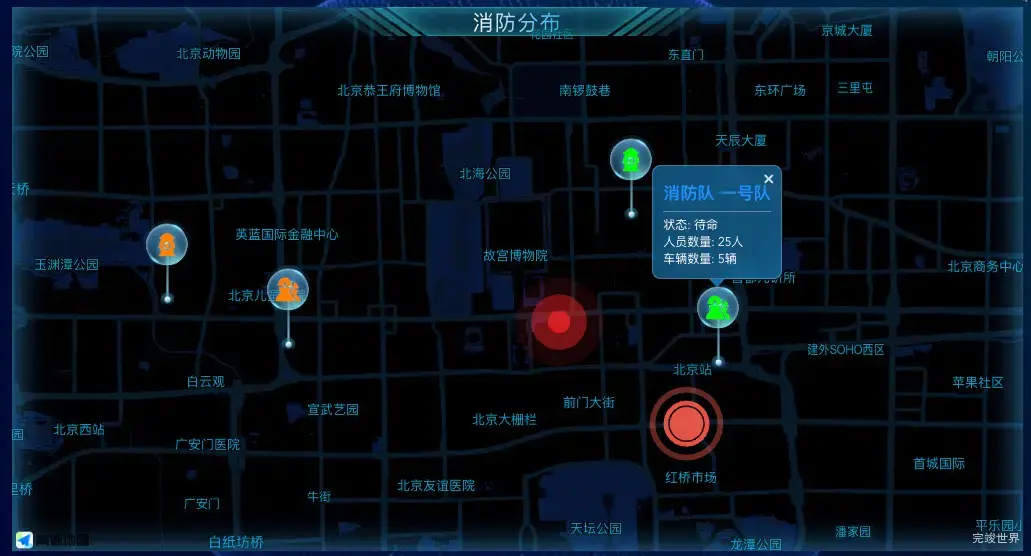

消防分布

集成高德地图，展示火情地点、消防栓、消防队分布。

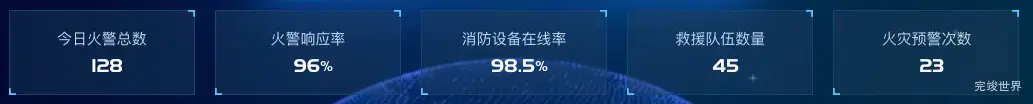

数字卡片

今日火警总数、响应率、设备在线率、救援队伍数、火灾预警次数等关键指标卡片展示。

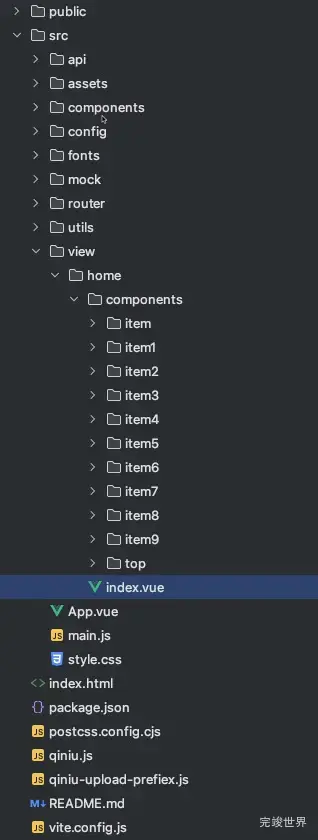

项目结构

部分代码

<template>
  <div class="home">
    <bgAnimate></bgAnimate>
    <top class="wow fadeInDown" title="智慧消防大数据中心"></top>
    <div class="homeMain">
      <div class="homeMainLeft">
        <div class="item1 wow fadeInLeft">
          <item title="接警占比">
            <item1></item1>
          </item>
        </div>
        <div class="item1 wow fadeInLeft" data-wow-delay="0.5s">
          <item title="警情类型">
            <item2></item2>
          </item>
        </div>
        <div class="item1 wow fadeInLeft" data-wow-delay="1s">
          <item title="24小时火灾分布情况">
            <item3></item3>
          </item>
        </div>
      </div>
      <div class="homeMainCenter">
        <div class="homeMainCenterTop">
          <item4></item4>
        </div>
        <div class="homeMainCenterC">
          <item9></item9>
        </div>
        <div class="homeMainCenterBottom">

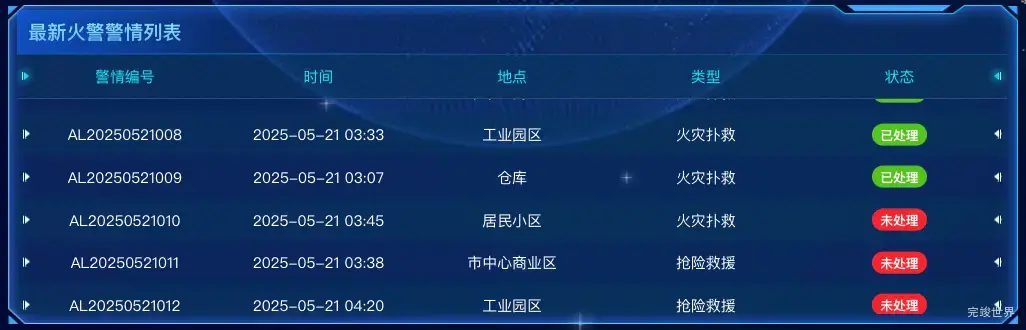

          <item type="big"  class="wow fadeInUp" title="最新火警警情列表" data-wow-delay="0.5s">
            <item5></item5>
          </item>
        </div>
      </div>
      <div class="homeMainRight">
        <div class="item1 wow fadeInRight">
          <item title="着火物质分析">
            <item6></item6>
          </item>
        </div>
        <div class="item1 wow fadeInRight" data-wow-delay="0.5s">
          <item title="着火场所分析">
            <item7></item7>
          </item>
        </div>
        <div class="item1 wow fadeInRight" data-wow-delay="1s">
          <item title="气候因素影响分析">
            <item8></item8>
          </item>
        </div>
      </div>
    </div>
  </div>
</template>

<script setup>
import { ref, onMounted } from 'vue'
import { gsap } from "gsap";
import WOW from "wow.js"
import top from "./components/top/index.vue"
import item from "./components/item/index.vue"
import item1 from "./components/item1/index.vue"
import item2 from "./components/item2/index.vue"
import item3 from "./components/item3/index.vue"
import item4 from "./components/item4/index.vue"
import item5 from "./components/item5/index.vue"
import item6 from "./components/item6/index.vue"
import item7 from "./components/item7/index.vue"
import item8 from "./components/item8/index.vue"
import item9 from "./components/item9/index.vue"
import bgAnimate from "@/components/bgAnimate/index.vue"

// 生命周期钩子
onMounted(() => {
  const wow = new WOW({})
  wow.init()

  // GSAP 动画：homeMainCenterC 从缩放0到1
  gsap.fromTo(
      ".homeMainCenterC",
      { scale: 0 },
      { scale: 1, duration: 1, ease: "power1.out" }
  );
})
</script>

项目依赖

{
  "name": "zhihuixiaofang",
  "private": true,
  "version": "1.2.0",
  "type": "module",
  "scripts": {
    "dev": "vite",
    "build": "vite build",
    "build-qiniu": "vite build && node ./qiniu.js",
    "preview": "vite preview"
  },
  "dependencies": {
    "@meruem117/vue-seamless-scroll": "^0.1.8",
    "@vue/shared": "^3.2.47",
    "autoprefixer": "^10.4.13",
    "axios": "^1.6.8",
    "crypto-js": "^4.2.0",
    "dayjs": "^1.11.7",
    "disable-devtool": "^0.3.7",
    "echarts": "^5.5.0",
    "echarts-extension-amap": "^1.12.0",
    "element-plus": "2.3.8",
    "fs": "0.0.1-security",
    "gsap": "^3.12.5",
    "highcharts": "^10.1.0",
    "jquery": "^3.6.4",
    "lottie-web": "^5.12.2",
    "mockjs": "^1.1.0",
    "postcss": "^8.4.21",
    "postcss-loader": "^7.0.2",
    "postcss-pxtorem": "^6.0.0",
    "qiniu": "^7.8.0",
    "sass": "^1.57.1",
    "sass-loader": "^13.2.0",
    "style-loader": "^3.3.1",
    "vite-plugin-compression": "^0.5.1",
    "vite-plugin-mock": "^2.9.8",
    "vue": "^3.2.45",
    "vue-router": "^4.1.6",
    "vue3-number-roll-plus": "^0.1.3",
    "wow.js": "^1.2.2"
  },
  "devDependencies": {
    "@vitejs/plugin-vue": "^4.0.0",
    "vite": "^4.0.0"
  }
}

源码下载

项目基于vue3+vite+js开发 nodejs 23

购买代码前请确保具备相关开发基础

本项目为纯前端大屏，无后端支持

默认数据为模拟数据，实际使用时需接入真实数据源

虚拟产品一经售出概不退款请谅解
