vue2 可视化驾驶舱 湖北各市人均 GDP 数据大屏
视频演示

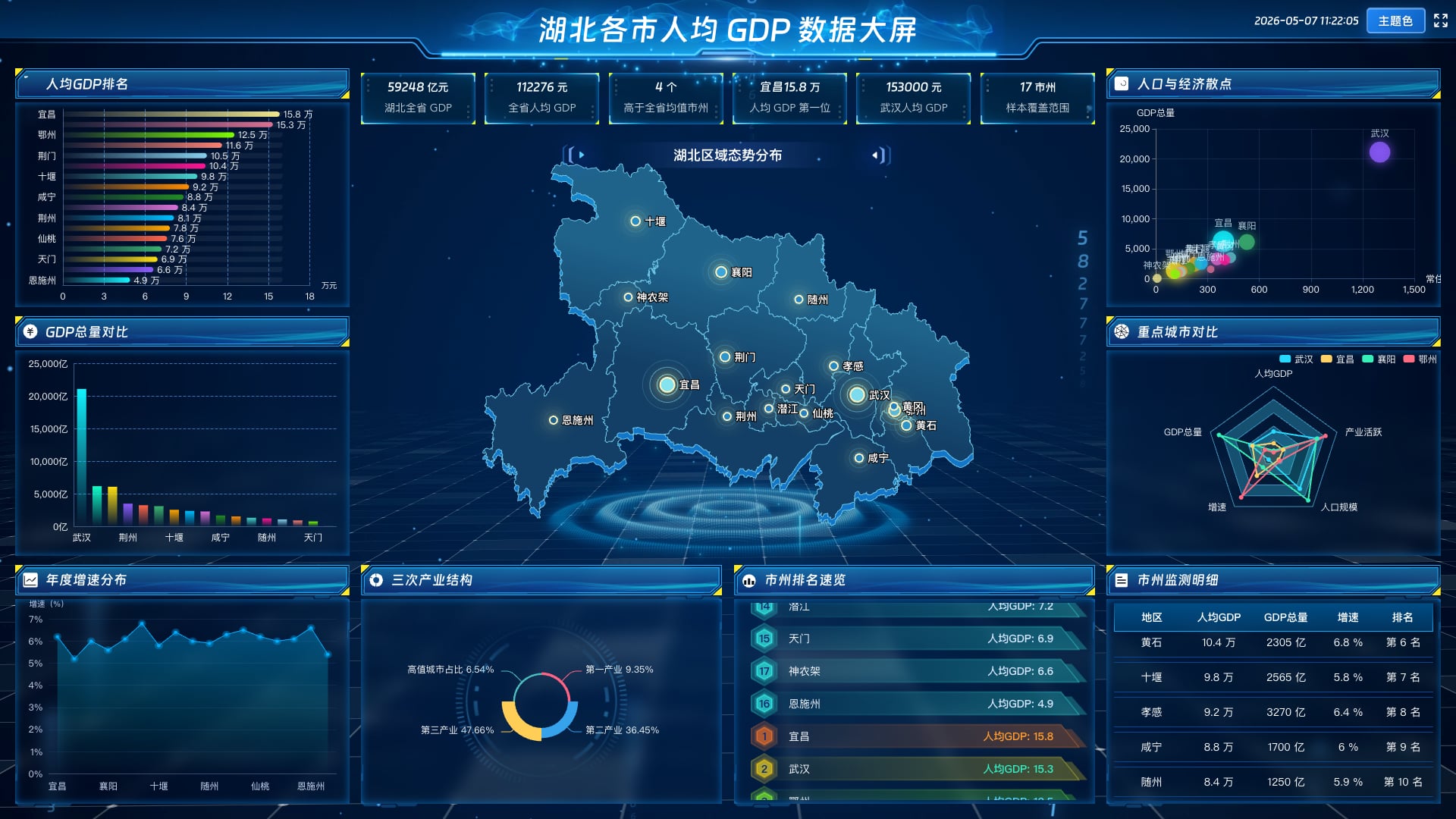

效果截图
项目信息
项目ID：467
开发环境：nodejs 24
开发框架：vue2 vite js
标准分辨率：1920 * 1080
演示地址
演示demo:vue2 可视化驾驶舱 湖北各市人均 GDP 数据大屏
模块列表

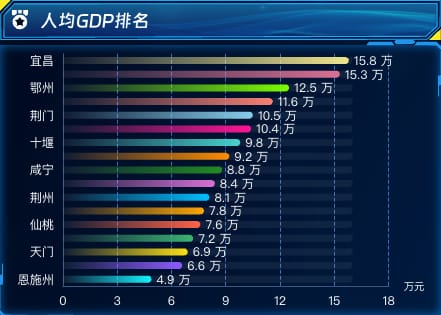

人均 GDP 排名

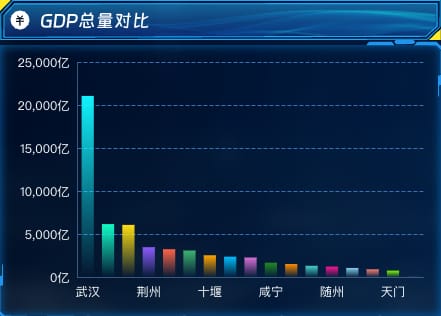

GDP 总量对比

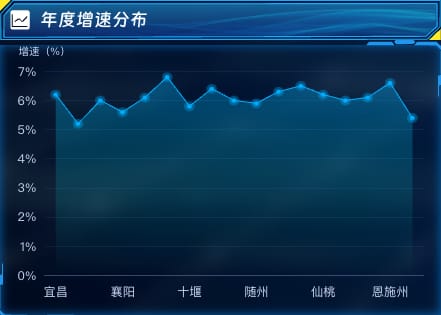

年度增速分布

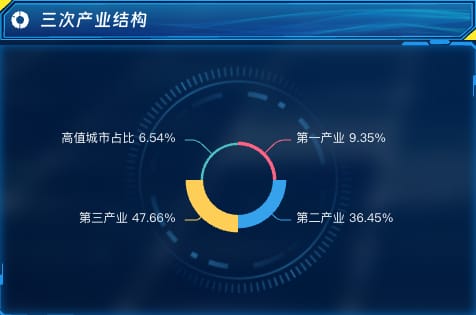

三次产业结构

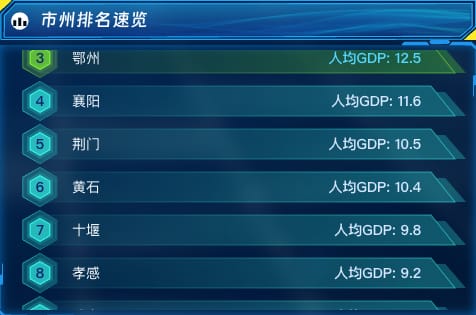

市州排名速览

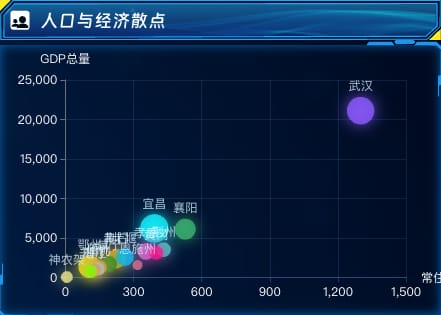

人口与经济散点

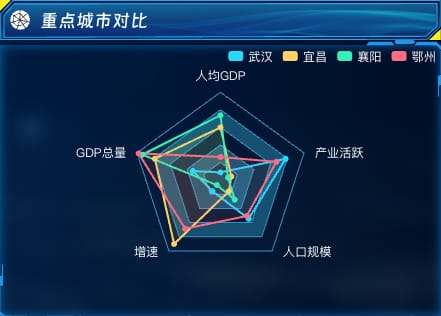

重点城市对比

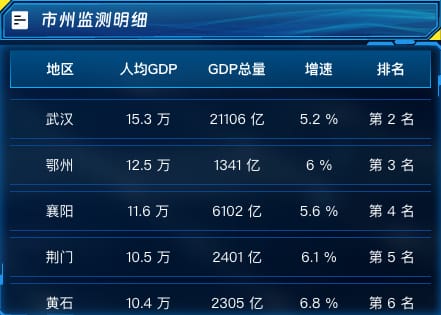

市州监测明细
GDP 核心指标概览
项目依赖
{
"name": "467_renjungdp_vue2",
"private": true,
"version": "0.0.0",
"type": "module",
"scripts": {
"dev": "vite",
"build": "vite build",
"build-qiniu": "vite build && node ./qiniu.js",
"preview": "vite preview"
},
"dependencies": {
"@meruem117/vue-seamless-scroll": "^0.0.19",
"@turf/turf": "^7.3.1",
"@vitejs/plugin-vue": "^6.0.1",
"autoprefixer": "^10.4.21",
"core-js": "^3.34.0",
"echarts": "^5.4.3",
"echarts-extension-amap": "^1.12.0",
"echarts-gl": "^2.0.9",
"echarts-liquidfill": "^3.1.0",
"echarts-wordcloud": "^2.1.0",
"element-ui": "^2.15.14",
"gsap": "^3.11.4",
"lottie-web": "^5.13.0",
"path": "^0.12.7",
"pinia": "^2.0.36",
"postcss": "^8.4.21",
"postcss-loader": "^7.0.2",
"postcss-pxtorem": "^5.1.1",
"qiniu": "^7.8.0",
"qs": "^6.10.1",
"sass": "^1.57.1",
"three": "^0.151.0",
"vite-plugin-vue2": "^2.0.3",
"vue": "2.6.14",
"vue-router": "^3.0.1",
"vuex": "3",
"wow.js": "^1.2.2"
},
"devDependencies": {
"@vitejs/plugin-vue2": "^2.2.0",
"vite": "^7.3.1",
"vue-template-compiler": "2.6.14"
}
}
部分代码
<template>
<div class="home" id="home">
<bg></bg>
<top class="wow fadeInDown" name="湖北各市人均 GDP 数据大屏"></top>
<div class="homeMain">
<div class="homeMainl">
<div class="item1">
<item name="人均 GDP 排名" :duration="0.5"
:lottieData="lottieIcons[0]"
:delay="0">
<item1 :data="cityData"></item1>
</item>
</div>
<div class="item1">
<item name="GDP 总量对比" :duration="0.5"
:lottieData="lottieIcons[1]"
:delay="0.5">
<item2 :data="cityData"></item2>
</item>
</div>
<div class="item1">
<item name="年度增速分布" :duration="0.5"
:lottieData="lottieIcons[2]"
:delay="1">
<item3 :data="cityData"></item3>
</item>
</div>
</div>
<div class="homeMainc">
<div class="item0" name="GDP 核心指标概览" data-module-id="GDP 核心指标概览">
<item7 :data="cityData"></item7>
</div>
<div class="item1" ref="transportModule">
<item8 :data="cityData"></item8>
</div>
<div class="item3">
<div class="item3Inner">
<item name="三次产业结构" :duration="0.5"
:lottieData="lottieIcons[6]"
:delay="1">
<item9 :data="cityData"></item9>
</item>
</div>
<div class="item3Inner">
<item name="市州排名速览" :duration="0.5"
:lottieData="lottieIcons[7]"
:delay="1">
<item10 :data="cityData"></item10>
</item>
</div>
</div>
</div>
<div class="homeMainr">
<div class="item1">
<item name="人口与经济散点" :duration="0.5"
:lottieData="lottieIcons[3]"
:delay="0">
<item4 :data="cityData"></item4>
</item>
</div>
<div class="item1">
<item name="重点城市对比" :duration="0.5"
:lottieData="lottieIcons[4]"
:delay="0.5">
<item5 :data="cityData"></item5>
</item>
</div>
<div class="item1">
<item name="市州监测明细" :duration="0.5"
:lottieData="lottieIcons[5]"
:delay="1">
<item6 :data="cityData"></item6>
</item>
</div>
</div>
</div>
</div>
</template>
<script>
import WOW from 'wow.js'
// 引入 gsap
import {gsap} from 'gsap'
import top from '@/components/top/index.vue'
import bg from '@/components/bg/index.vue'
import item from '@/components/item/index.vue'
import item1 from './components/item1/index.vue'
import item2 from './components/item2/index.vue'
import item3 from './components/item3/index.vue'
import item4 from './components/item4/index.vue'
import item5 from './components/item5/index.vue'
import item6 from './components/item6/index.vue'
import item7 from './components/item7/index.vue'
import item8 from './components/item8/index.vue'
import item9 from './components/item9/index.vue'
import item10 from './components/item10/index.vue'
import icon1 from '@/fonts/lottieIcon/1.json'
import icon2 from '@/fonts/lottieIcon/2.json'
import icon3 from '@/fonts/lottieIcon/3.json'
import icon4 from '@/fonts/lottieIcon/4.json'
import icon5 from '@/fonts/lottieIcon/5.json'
import icon6 from '@/fonts/lottieIcon/6.json'
import icon7 from '@/fonts/lottieIcon/7.json'
import icon8 from '@/fonts/lottieIcon/8.json'
const AUTO_REFRESH_MS = 30 * 60 * 1000
export default {
name: 'Home',
components: {
top,
bg,
item,
item1,
item2,
item3,
item4,
item5,
item6,
item7,
item8,
item9,
item10
},
data() {
return {
lottieIcons: [icon1, icon2, icon3, icon4, icon5, icon6, icon7, icon8],
refreshTimerId: null,
cityData: [
{
name: '宜昌',
perCapita: 15.8,
gdp: 6191,
growth: 6.2,
pop: 392,
rank: 1,
group: '高位',
industry: [12, 48, 40]
},
{
name: '武汉',
perCapita: 15.3,
gdp: 21106,
growth: 5.2,
pop: 1300,
rank: 2,
group: '高位',
industry: [2, 35, 63]
},
{
name: '鄂州',
perCapita: 12.5,
gdp: 1341,
growth: 6.0,
pop: 107,
rank: 3,
group: '高位',
industry: [6, 47, 47]
},
{
name: '襄阳',
perCapita: 11.6,
gdp: 6102,
growth: 5.6,
pop: 528,
rank: 4,
group: '较高',
industry: [10, 43, 47]
},
{
name: '荆门',
perCapita: 10.5,
gdp: 2401,
growth: 6.1,
pop: 227,
rank: 5,
group: '较高',
industry: [11, 41, 48]
},
{
name: '黄石',
perCapita: 10.4,
gdp: 2305,
growth: 6.8,
pop: 221,
rank: 6,
group: '较高',
industry: [7, 46, 47]
},
{name: '十堰', perCapita: 9.8, gdp: 2565, growth: 5.8, pop: 262, rank: 7, group: '中位', industry: [9, 39, 52]},
{
name: '孝感',
perCapita: 9.2,
gdp: 3270,
growth: 6.4,
pop: 355,
rank: 8,
group: '中位',
industry: [12, 38, 50]
},
{
name: '咸宁',
perCapita: 8.8,
gdp: 1700,
growth: 6.0,
pop: 193,
rank: 9,
group: '中位',
industry: [11, 35, 54]
},
{
name: '随州',
perCapita: 8.4,
gdp: 1250,
growth: 5.9,
pop: 149,
rank: 10,
group: '中位',
industry: [13, 37, 50]
},
{
name: '荆州',
perCapita: 8.1,
gdp: 3506,
growth: 6.3,
pop: 433,
rank: 11,
group: '中位',
industry: [15, 31, 54]
},
{
name: '黄冈',
perCapita: 7.8,
gdp: 3120,
growth: 6.5,
pop: 400,
rank: 12,
group: '中低',
industry: [16, 30, 54]
},
{
name: '仙桃',
perCapita: 7.6,
gdp: 1092,
growth: 6.2,
pop: 143,
rank: 13,
group: '中低',
industry: [14, 36, 50]
},
{
name: '潜江',
perCapita: 7.2,
gdp: 930,
growth: 6.0,
pop: 129,
rank: 14,
group: '中低',
industry: [12, 38, 50]
},
{
name: '天门',
perCapita: 6.9,
gdp: 780,
growth: 6.1,
pop: 113,
rank: 15,
group: '中低',
industry: [18, 29, 53]
},
{
name: '恩施州',
perCapita: 4.9,
gdp: 1550,
growth: 6.6,
pop: 318,
rank: 16,
group: '低位',
industry: [18, 24, 58]
},
{name: '神农架', perCapita: 6.6, gdp: 39, growth: 5.4, pop: 7, rank: 17, group: '低位', industry: [15, 22, 63]}
],
}
},
mounted() {
const wow = new WOW({})
wow.init()
this.initScaleAnimation()
// 自动刷新定时器
this.refreshTimerId = window.setInterval(() => {
window.location.reload()
}, AUTO_REFRESH_MS)
},
methods: {
// 缩放动画方法
initScaleAnimation() {
// 初始状态：缩小到0、透明
gsap.set(this.$refs.transportModule, {
scale: 0,
opacity: 0,
})
// 执行动画：从小到大、淡入
gsap.to(this.$refs.transportModule, {
scale: 1,
opacity: 1,
duration: 1.5, // 动画时长
delay: 0.5, // 延迟0.5秒播放
ease: 'back.out(1.2)', // 弹性缓动（更流畅）
})
},
},
beforeDestroy() {
if (this.refreshTimerId) {
clearInterval(this.refreshTimerId)
this.refreshTimerId = null
}
}
}
</script>
项目文件目录
├── .git
├── public // 静态资源公共目录
├── src // 源代码目录
│ ├── components // 可复用的 Vue 组件
│ ├── config // 配置文件目录
│ ├── fonts // 字体文件目录
│ ├── router // Vue Router 配置
│ ├── store // Vuex 状态管理
│ ├── utils // 工具函数目录
│ ├── view // 页面级组件
│ │ └── home // 【home】页面组件
│ │ └── components // 组件子目录
│ │ ├── item1
│ │ ├── item2
│ │ ├── item3
│ │ ├── item4
│ │ ├── item5
│ │ ├── item6
│ │ ├── item7
│ │ ├── item8
│ │ ├── item9
│ │ └── item10
│ ├── App.vue // 根组件
│ ├── main.js // 全局脚本文件，项目的入口
│ └── style.css
├── index.html // 入口 HTML 文件
├── jsconfig.json // JS/TS 路径映射配置
├── package.json // 项目配置文件
├── postcss.config.cjs // PostCSS 配置
├── qiniu-upload-prefiex.js // 七牛配置文件
├── qiniu.js // 七牛上传文件
├── README.md // 项目说明文件
└── vite.config.js // Vite 构建配置
项目说明
数据非真实数据,仅做效果展示
更多大屏
源码下载
项目基于vue2+vite+js 开发
获取代码前请确保具备相关开发基础
本项目为纯前端大屏，无后端支持
默认数据为模拟数据，实际使用时需接入真实数据源
请在确认需求后再获取相关代码
当前为vue2版本，如果需要vue3版本请访问：湖北各市人均 GDP 数据大屏 - vue3 可视化驾驶舱
