vue3 数据可视化大屏 汽车销售数据可视化大屏

id

352

运行环境

nodejs 23

开发框架

vue3 vite js

分辨率

1920*1080

演示地址

vue3 数据可视化大屏 汽车销售数据可视化大屏

演示demo:vue3 数据可视化大屏 汽车销售数据可视化大屏

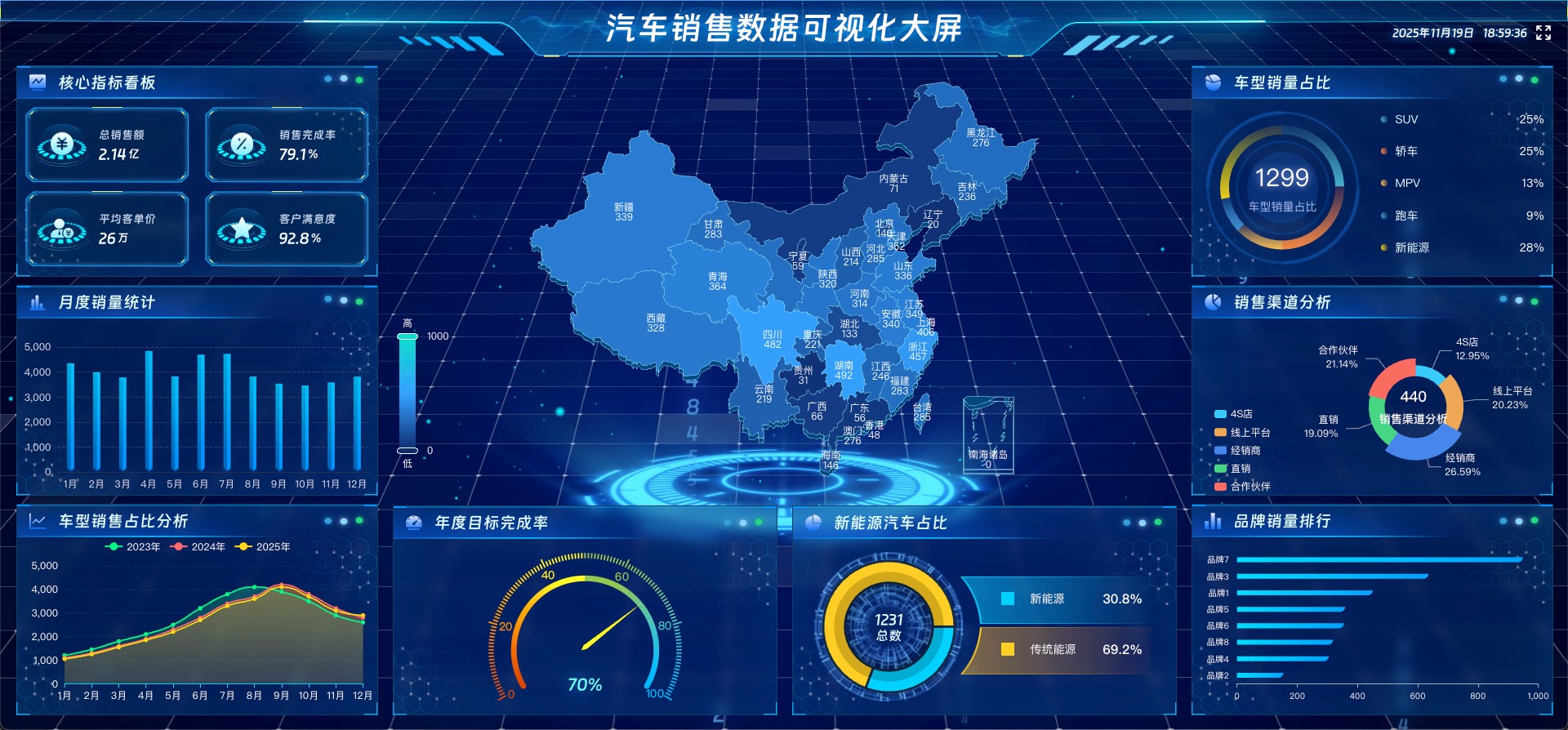

效果截图

视频演示

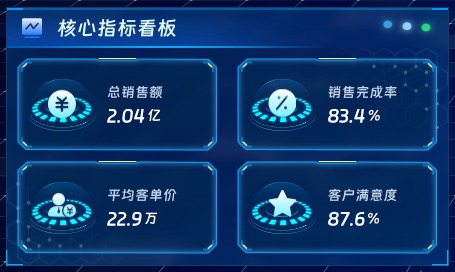

核心指标看板

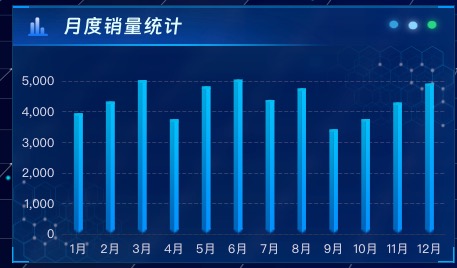

月度销量统计

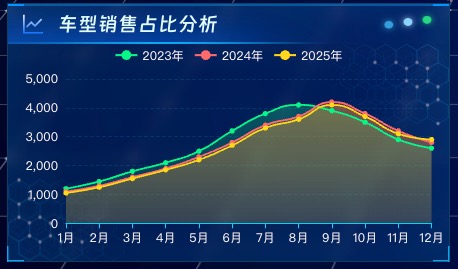

车型销售占比分析

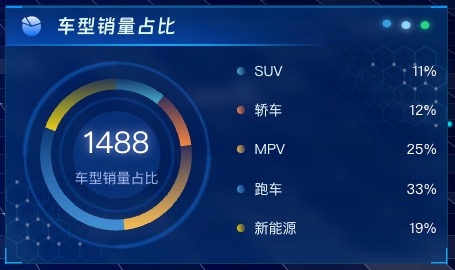

车型销量占比

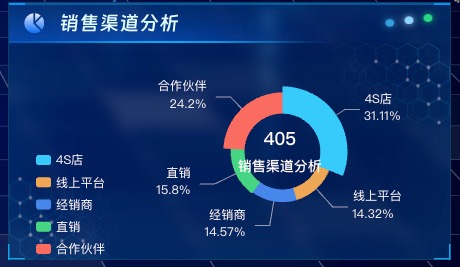

销售渠道分析

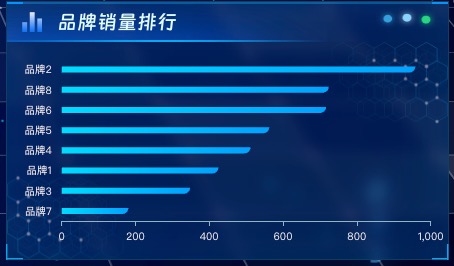

品牌销量排行

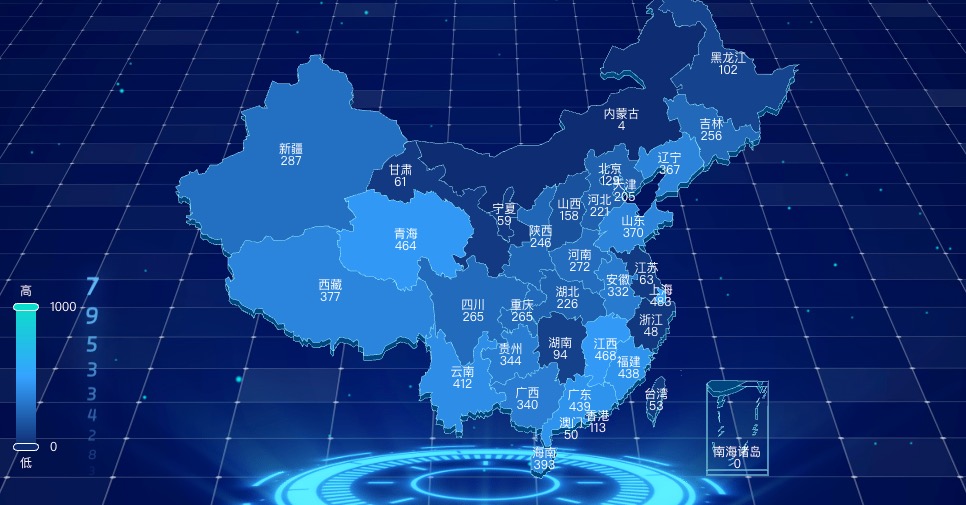

地图标注

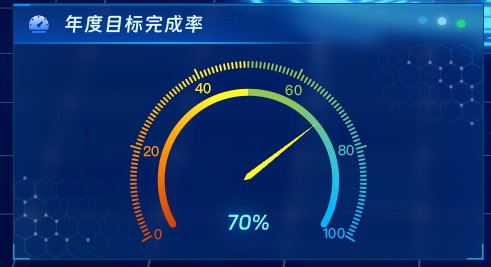

年度目标完成率

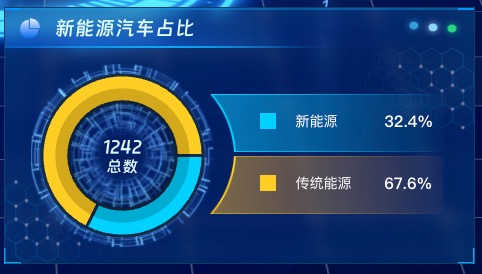

新能源汽车占比

项目依赖

{
  "name": "352_qichexiaoshou_vue3",
  "private": true,
  "version": "1.0.0",
  "type": "module",
  "scripts": {
    "dev": "vite",
    "build": "vite build",
    "build-qiniu": "vite build && node ./qiniu.js",
    "build-qiniu2": "node ./qiniu.js",
    "preview": "vite preview"
  },
  "dependencies": {
    "@meruem117/vue-seamless-scroll": "^0.1.8",
    "autoprefixer": "^10.4.13",
    "axios": "^1.5.1",
    "dayjs": "^1.11.7",
    "disable-devtool": "^0.3.7",
    "echarts": "^5.4.3",
    "echarts-liquidfill": "^3.1.0",
    "fs": "0.0.1-security",
    "gsap": "^3.11.4",
    "postcss": "^8.4.21",
    "postcss-loader": "^7.0.2",
    "postcss-pxtorem": "^6.0.0",
    "qiniu": "^7.8.0",
    "sass": "^1.57.1",
    "sass-loader": "^13.2.0",
    "style-loader": "^3.3.1",
    "three": "^0.180.0",
    "vue": "^3.2.45",
    "vue-router": "^4.1.6",
    "wow.js": "^1.2.2"
  },
  "devDependencies": {
    "@vitejs/plugin-vue": "^4.0.0",
    "vite": "^4.0.0"
  }
}

部分代码

<template>
  <div class="home">
    <!--    数字上升装饰-->
    <bgAnimate></bgAnimate>
    <!--    粒子效果-->
    <bgAnimate2></bgAnimate2>
    <!--   方块背景-->
    <bgAnimate3></bgAnimate3>
    <!--旋转底座装饰-->
    <bg></bg>
    <top class="wow fadeInDown" name="汽车销售数据可视化大屏"></top>
    <div class="homeMain">
      <div class="homeMainl">
        <div class="item1">
          <item name="核心指标看板" icon="icon-1kanban" :duration="0.5" :delay="0">
            <item1></item1>
          </item>
        </div>
        <div class="item1">
          <item name="月度销量统计" icon="icon-2tongji" :duration="0.5" :delay="0.5">
            <item2></item2>
          </item>
        </div>
        <div class="item1">
          <item name="车型销售占比分析" icon="icon-3qushi" :duration="0.5" :delay="1">
            <item3></item3>
          </item>
        </div>
      </div>
      <div class="homeMainc">
        <div class="item0" ref="item0Ref">
          <item7></item7>
        </div>
        <div class="item1">
          <div class="item1Inner">
            <item name="年度目标完成率" type="2" icon="icon-7wanchenglv" :duration="0.5" :delay="1">
              <item8></item8>
            </item>
          </div>
          <div class="item1Inner">
            <item name="新能源汽车占比" type="2" icon="icon-8zhanbi" :duration="0.5" :delay="1">
              <item9></item9>
            </item>
          </div>
        </div>
      </div>
      <div class="homeMainr">
        <div class="item1">
          <item name="车型销量占比" icon="icon-4zhanbi" :duration="0.5" :delay="0">
            <item4></item4>
          </item>
        </div>
        <div class="item1">
          <item name="销售渠道分析" icon="icon-5fenxi" :duration="0.5" :delay="0.5">
            <item5></item5>
          </item>
        </div>
        <div class="item1">
          <item name="品牌销量排行" icon="icon-6paihang" :duration="0.5" :delay="1">
            <item6></item6>
          </item>
        </div>
      </div>
    </div>
  </div>
</template>

<script setup>
import {ref, onMounted} from 'vue'
import {gsap} from 'gsap'
import top from '@/components/top/index.vue'
import WOW from "wow.js"
import item from "@/components/item/index.vue"
import item1 from './components/item1/index.vue'
import item3 from './components/item3/index.vue'
import item5 from './components/item5/index.vue'
import item4 from './components/item4/index.vue'
import item2 from './components/item2/index.vue'
import item6 from './components/item6/index.vue'
import item7 from './components/item7/index.vue'
import item8 from './components/item8/index.vue'
import item9 from './components/item9/index.vue'
import bgAnimate from '@/components/bgAnimate/index.vue'
import bgAnimate2 from '@/components/bgAnimate2/index.vue'
import bgAnimate3 from '@/components/bgAnimate3/index.vue'
import bg from '@/components/bg/index.vue'

// 获取item0元素的引用
const item0Ref = ref(null)

// 生命周期钩子
onMounted(() => {
  const wow = new WOW({})
  wow.init()

  // 在组件挂载后执行GSAP动画
  animateItem0()
})

// GSAP动画函数
const animateItem0 = () => {
  if (!item0Ref.value) return

  // 使用GSAP创建从小到大并带弹跳效果的缩放动画
  gsap.fromTo(item0Ref.value,
      {
        // 初始状态：缩小到0
        scale: 0,
        opacity: 0
      },
      {
        // 结束状态：恢复到原始大小
        scale: 1,
        opacity: 1,
        duration: 1.5, // 动画持续时间1.5秒
        ease: "elastic.out(1, 0.8)", // 弹性缓动效果，让动画更有趣味性
        delay: 0.5 // 延迟0.5秒开始，让页面其他元素先加载
      }
  )
}
</script>

大屏数据可视化模板

数据可视化大屏模板

更多背景图资源

数据可视化大屏背景图

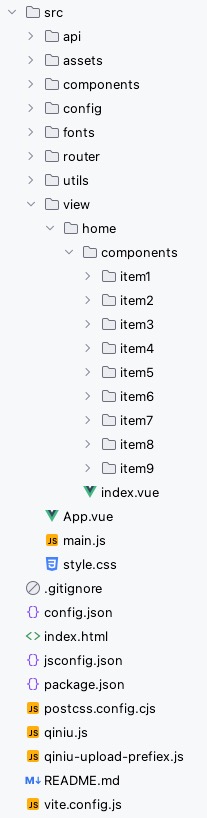

项目文件目录

项目说明

数据非真实数据,仅做效果展示

相关大屏

汽车租赁数据可视化监控平台 可视化数据大屏 vue3
新能源汽车大数据平台 vue3 数据可视化大屏

源码下载

项目基于vue3+vite+js开发 nodejs 23

获取代码前请确保具备相关开发基础

本项目为纯前端大屏，无后端支持

默认数据为模拟数据，实际使用时需接入真实数据源

请在确认需求后再获取相关代码

如需vue2版本请访问:汽车销售数据可视化大屏vue2
