vue2 数据可视化大屏 火车票数据可视化分析平台

id

331

运行环境

nodejs 23

开发框架

vue2 vite js

分辨率

1920*1080

演示地址

vue2 数据可视化大屏 火车票数据可视化分析平台

演示demo:vue2 数据可视化大屏 火车票数据可视化分析平台

效果截图

视频演示

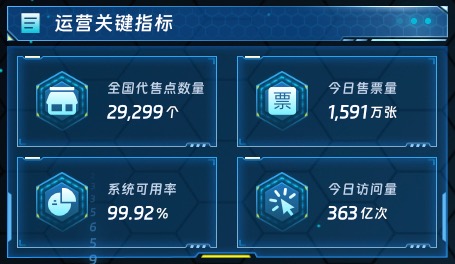

运营关键指标

数字卡片展示运营关键指标

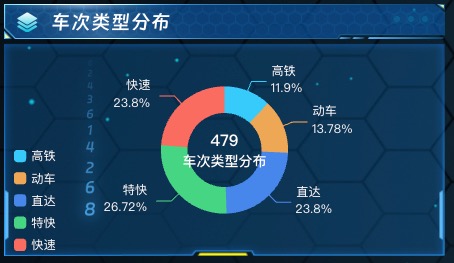

车次类型分布

饼状图展示车次类型分布

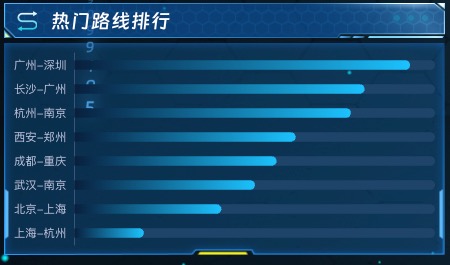

热门路线排行

柱状图展示热门路线排行

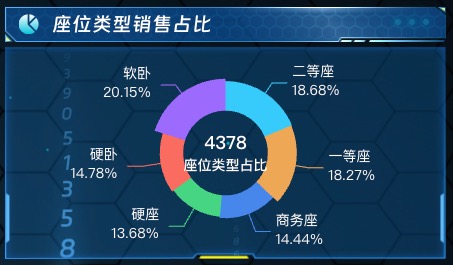

座位类型销售占比

饼状图展示座位类型销售占比

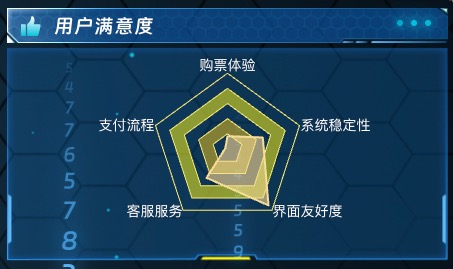

用户满意度

雷达图展示用户满意度

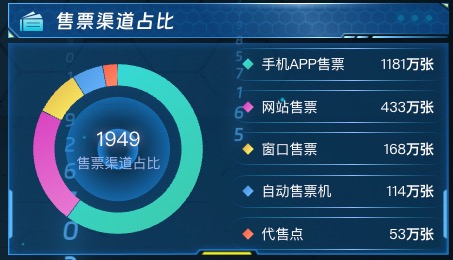

售票渠道占比

饼状图展示售票渠道占比

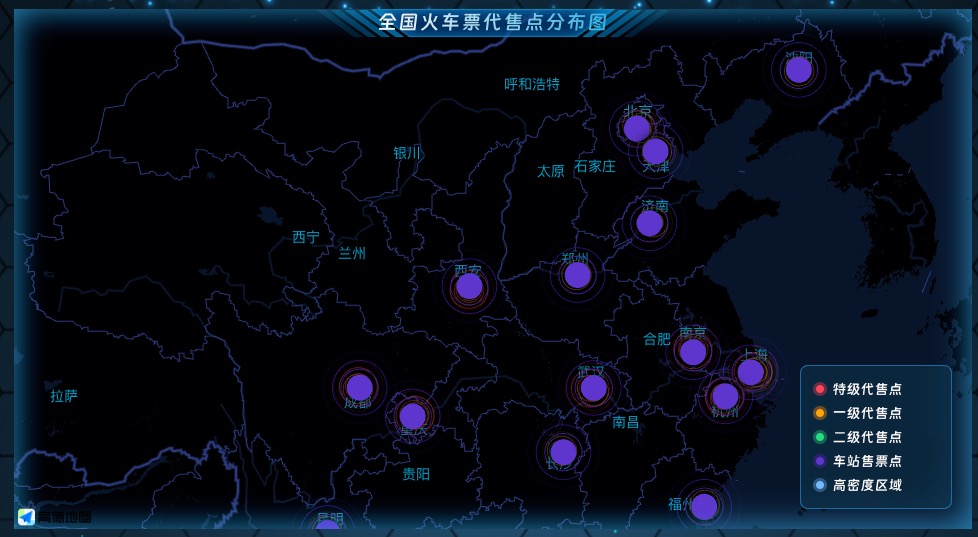

全国火车票代售点分布图

地图展示全国火车票代售点分布图

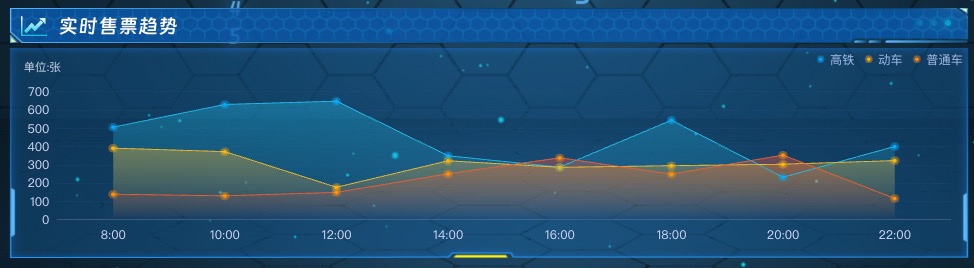

实时售票趋势

折线图展示实时售票趋势

项目依赖

{
  "name": "331_huochepiao_vue2",
  "private": true,
  "version": "0.0.0",
  "type": "module",
  "scripts": {
    "dev": "vite",
    "build": "vite build",
    "build-qiniu": "vite build && node ./qiniu.js",
    "preview": "vite preview"
  },
  "dependencies": {
    "@meruem117/vue-seamless-scroll": "^0.0.19",
    "@vitejs/plugin-vue": "^6.0.1",
    "@vue/composition-api": "^1.7.2",
    "autoprefixer": "^10.4.21",
    "core-js": "^3.34.0",
    "dayjs": "^1.11.7",
    "echarts": "^5.4.3",
    "echarts-extension-amap": "^1.12.0",
    "echarts-gl": "^2.0.9",
    "fs": "0.0.1-security",
    "gsap": "^3.11.4",
    "path": "^0.12.7",
    "postcss": "^8.4.21",
    "postcss-loader": "^7.0.2",
    "postcss-pxtorem": "^5.1.1",
    "qiniu": "^7.8.0",
    "qs": "^6.10.1",
    "sass": "^1.57.1",
    "three": "^0.180.0",
    "vite-plugin-vue2": "^2.0.3",
    "vue": "2.6.14",
    "vue-router": "^3.0.1",
    "wow.js": "^1.2.2"
  },
  "devDependencies": {
    "@vitejs/plugin-vue2": "^2.2.0",
    "vite": "^4.0.0",
    "vue-template-compiler": "2.6.14"
  }
}

部分代码

<template>
  <div class="home">
    <!--    向下数字流-->
    <bgAnimate></bgAnimate>
    <!--    粒子效果-->
    <bgAnimate2></bgAnimate2>
    <top class="wow fadeInDown" name="火车票数据可视化分析平台"></top>
    <div class="homeMain">
      <div class="homeMainl">
        <div class="item1">
          <item name="运营关键指标" icon="icon-1zhibiao" :duration="0.5" :delay="0">
            <item1></item1>
          </item>
        </div>
        <div class="item1">
          <item name="车次类型分布" icon="icon-2leixing" :duration="0.5" :delay="0.5">
            <item2></item2>
          </item>
        </div>
        <div class="item1">
          <item name="热门路线排行" icon="icon-3luxian" :duration="0.5" :delay="1">
            <item3></item3>
          </item>
        </div>
      </div>
      <div class="homeMainc">
        <div class="item0" ref="item0Ref">
          <item7></item7>
        </div>
        <div class="item1">
          <item name="实时售票趋势" type="2" icon="icon-7qushi" :duration="0.5" :delay="0.5">
            <item8></item8>
          </item>
        </div>
      </div>
      <div class="homeMainr">
        <div class="item1">
          <item name="座位类型销售占比" icon="icon-4xiaoshou" :duration="0.5" :delay="0">
            <item4></item4>
          </item>
        </div>
        <div class="item1">
          <item name="用户满意度" icon="icon-5manyidu" :duration="0.5" :delay="0.5">
            <item5></item5>
          </item>
        </div>
        <div class="item1">
          <item name="售票渠道占比" icon="icon-6shoupiao" :duration="0.5" :delay="1">
            <item6></item6>
          </item>
        </div>
      </div>
    </div>
  </div>
</template>

<script>
import gsap from 'gsap'
import top from '@/components/top/index.vue'
import WOW from "wow.js"
import item from "@/components/item/index.vue"
import item1 from './components/item1/index.vue'
import item3 from './components/item3/index.vue'
import item5 from './components/item5/index.vue'
import item4 from './components/item4/index.vue'
import item2 from './components/item2/index.vue'
import item6 from './components/item6/index.vue'
import item7 from './components/item7/index.vue'
import item8 from './components/item8/index.vue'
import bgAnimate from '@/components/bgAnimate/index.vue'
import bgAnimate2 from '@/components/bgAnimate2/index.vue'

export default {
  name: 'Home',
  components: {
    top,
    item,
    item1,
    item2,
    item3,
    item4,
    item5,
    item6,
    item7,
    item8,
    bgAnimate,
    bgAnimate2
  },
  mounted() {
    // 初始化 WOW.js
    const wow = new WOW({})
    wow.init()

    // GSAP 缩放动画
    gsap.from(this.$refs.item0Ref, {
      scale: 0,              // 从0开始(完全缩小)
      duration: 1.5,         // 动画持续1.5秒
      ease: 'back.out(1.7)', // 缓动效果,带有弹性回弹
      delay: 0.3             // 延迟0.3秒开始
    })
  }
}
</script>

大屏数据可视化模板

数据可视化大屏模板

更多背景图资源

数据可视化大屏背景图

项目文件目录

项目说明

数据非真实数据,仅做效果展示

源码下载

项目基于vue2+vite+js开发 nodejs 23

获取代码前请确保具备相关开发基础

本项目为纯前端大屏，无后端支持

默认数据为模拟数据，实际使用时需接入真实数据源

请在确认需求后再获取相关代码

如需vue3版本请访问:火车票数据可视化分析平台vue3
